Airtraq - Guided video intubation

Multiple viewing options for every Airtraq

Wi-Fi Cam

Wi-Fi Camera

learn more

Endo Cams

Endo Cams

learn more

Phone Adapter

Phone Adapter

learn more

Direct View

Direct View

learn more

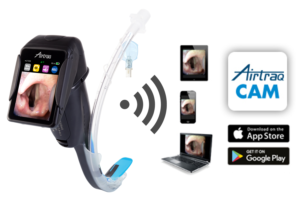

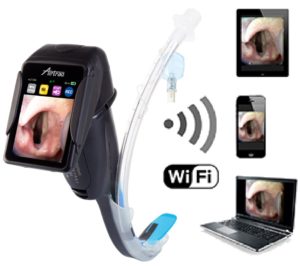

Wi-Fi Camera

  • 2 Axis Flip Screen enables intubation from any position
  • Video Recording
  • Wi-Fi to PC, Apple® & Android®
Wi-Fi Camera
Wi-Fi Camera

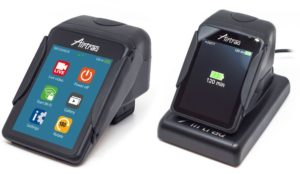

Wi-Fi Camera – Main Features

  • Portable and attachable to any Airtraq.
  • Integrated 2.8” Touch Panel flips and image rotates to enable intubation from any position.
  • Video Recording. Downloadable to PC.
  • Video Playback on screen with user friendly menus.
  • Simultaneous Wi-Fi connection to 5 different Apple® and Android™ phones/tablets and PC’s. “Airtraq Cam” App must be installed in every device.
  • Battery Operating time: 120 minutes.
WiFi Camera

Wi-Fi Camera – Quick Start Guide


Wi-Fi Camera – How to install silicon case


Wi-Fi Camera Software

HOW TO UPDATE AIRTRAQ WI-FI CAMERA

  • A-360 must be at least over 90% charged before upgrading. Otherwise the unit will not upgrade.
  • Select and download latest version of A-360 Internal Software from the table on Downloads section.
  • Turn On A-360 and connect to PC using the USB/Micro USB cable provided (directly or through docking).
  • Open A-360 and go to folder “System”. Copy unziped file from PC to “System”.
  • Keep A-360 cable connected to PC and, using PC´s menus, eject safely A-360 from PC (as usually done to remove any USB external device).
  • ONLY FOR MAC USERS: Wait a minute before performing next step.
  • Press and hold the On-Off button until “updating” is shown on the A-360 screen. Once the updating process is finished (it can take seconds or a few minutes depending on the update being performed) the screen will display “OK” message.
  • Disconnect the cable between PC and A-360. Turn on A-360 and check “System Info” to confirm the new software version is installed.

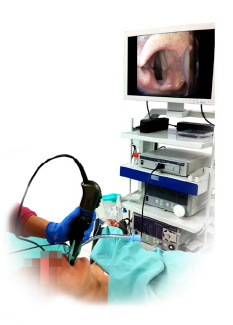

Endo Cam

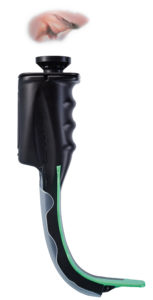

  • Eyecup, provided with every Airtraq, connects to most HD Endo Cameras already available in the operating room
Endo Cam
Endo Cam

Phone Adapter

  • Universal adapter for most Phones
  • Install Free “Airtraq Mobile” App into iPhone® & Android Phone
Universal adapter for most Phones
Universal adapter for most Phones

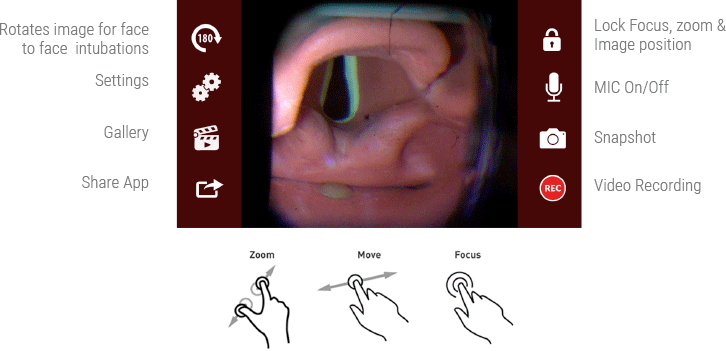

Phone Adapter Airtraq Mobile Menu

Phone Adapter Airtraq Mobile Menu

Phone Adapter – Initial Set Up

Phone Adapter – Initial Set Up

Direct view

  • Immediate glottis view without using any additional equipment.
  • Perfect backup viewing solution
Direct view
